源头工厂 · 食品杀菌设备专业制造商

管式 / 板式 / 套管式
连续杀菌机组 Tubular / Plate / Shell-and-Tube
Continuous Pasteurization Skids

专为果汁、乳品、奶茶、酒类、酱料、果酱生产线打造的杀菌段设备。食品级 304 不锈钢机身，PLC 触摸屏自动控温，CIP 在位清洗，按你的产能和物料定制方案。 Built for juice, dairy, tea drinks, wine, sauce and jam production lines. Sanitary 304 stainless frame, PLC touchscreen control, CIP cleaning, engineered to your capacity and product.

查看产品免费获取方案

1000-10000L/h

处理量范围Capacity Range

304/316L

食品级不锈钢Sanitary Steel

85-140℃

杀菌温度Temp Range

WHY NUOXUN

为什么选择诺勋杀菌设备

按物料选型、按产能定制，从方案到售后一站式交付

⚙

按物料选型，不硬推

稀流体走板式换热，高粘度含颗粒物料走套管式。选型阶段确认粘度、含固率、目标温度和处理量，再出配置。Plate type for thin fluids; tubular type for high-viscosity products with particles. We confirm viscosity, solids, temp and throughput before quoting.

🌡

温度闭环自动控温Closed-Loop Temperature Control

出口温度传感器反馈调节阀，蒸汽开度自动跟随；触摸屏实时显示各段温度、流量、压力，班次数据可导出留档。Outlet sensor modulates the steam valve automatically. All temps, flow and pressure are logged on the HMI and exportable per shift.

✓

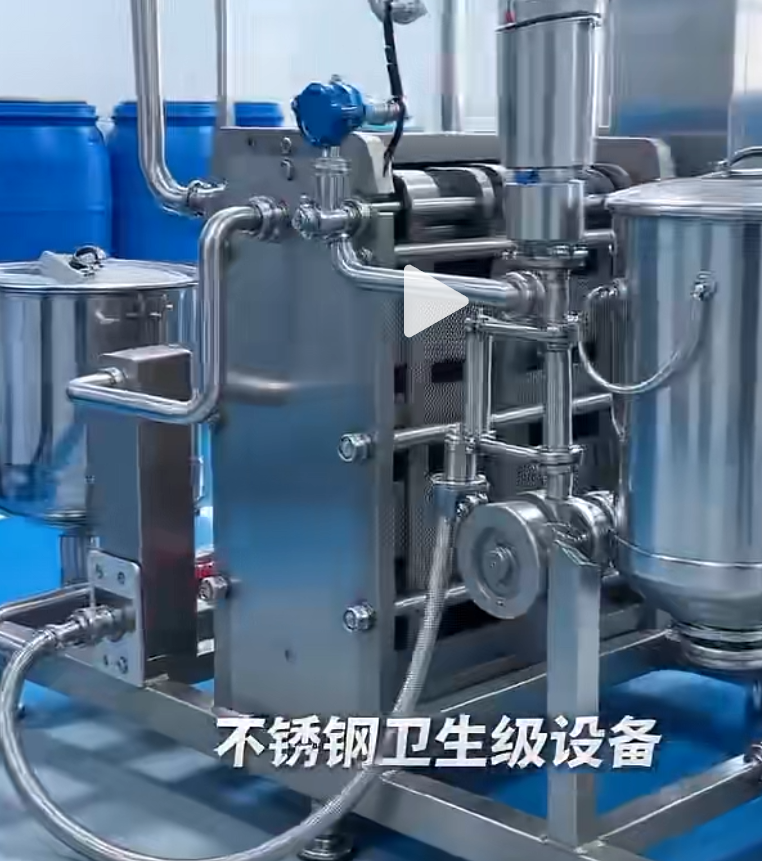

食品级卫生级设计Sanitary Design

过湿部件 304 标准（可选 316L），快装卡箍接口，无盲端无积料死角，支持 CIP 碱洗、酸洗、热水冲净一键流程。304 standard, 316L optional. Tri-clamp connections, no dead legs, CIP alkali-acid-hot-water cycle at the push of a button.

🔧

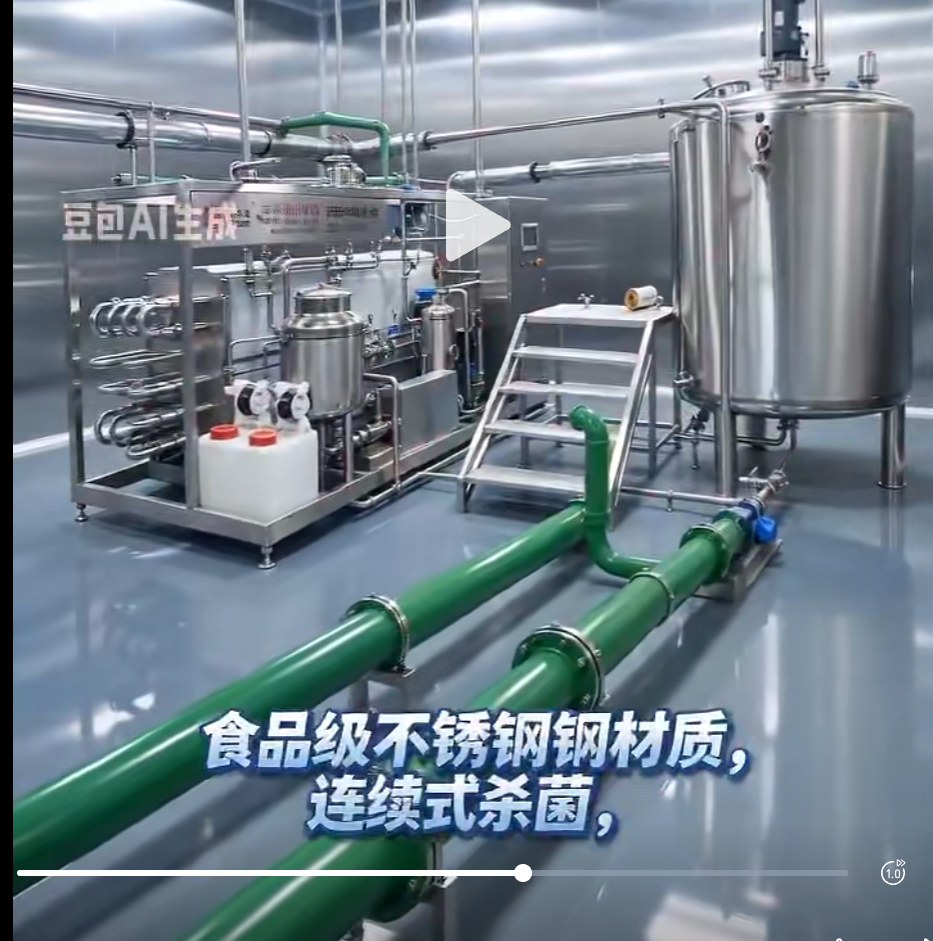

撬装整机，进场即用Skid-Mounted, Plug & Play

平衡罐、输送泵、换热段、保温管、冷却段、控制柜在工厂预组装，现场只接进料、出料、蒸汽、冷却水、电五根线。Balance tank, pump, heat section, holding tube, cooling, control cabinet pre-assembled. You only connect inlet, outlet, steam, cooling water and power.

🌐

中英文双语界面Bilingual HMI (CN/EN)

操作界面中英一键切换，公制/英制单位可切换，方便外贸型食品厂和海外项目现场的当地员工上手。One-click CN/EN switch, metric/imperial units — suitable for export-oriented plants and overseas projects with local operators.

🤝

源头工厂，售后跟到底Factory Direct, Full Support

前期出 P&ID 工艺图和场地布置图，中期工程师安装调试，后期易损件常备库存，远程电话支持随时响应。P&ID and layout drawings upfront, engineer installation & commissioning, spare gaskets and valves in stock, remote support available.

PRODUCTS

杀菌设备产品系列

两条产品线，覆盖从稀薄流体到高粘度酱料的全场景杀菌需求Two product lines covering everything from thin juices to high-viscosity sauces.

低粘度流体Low-Viscosity Fluids

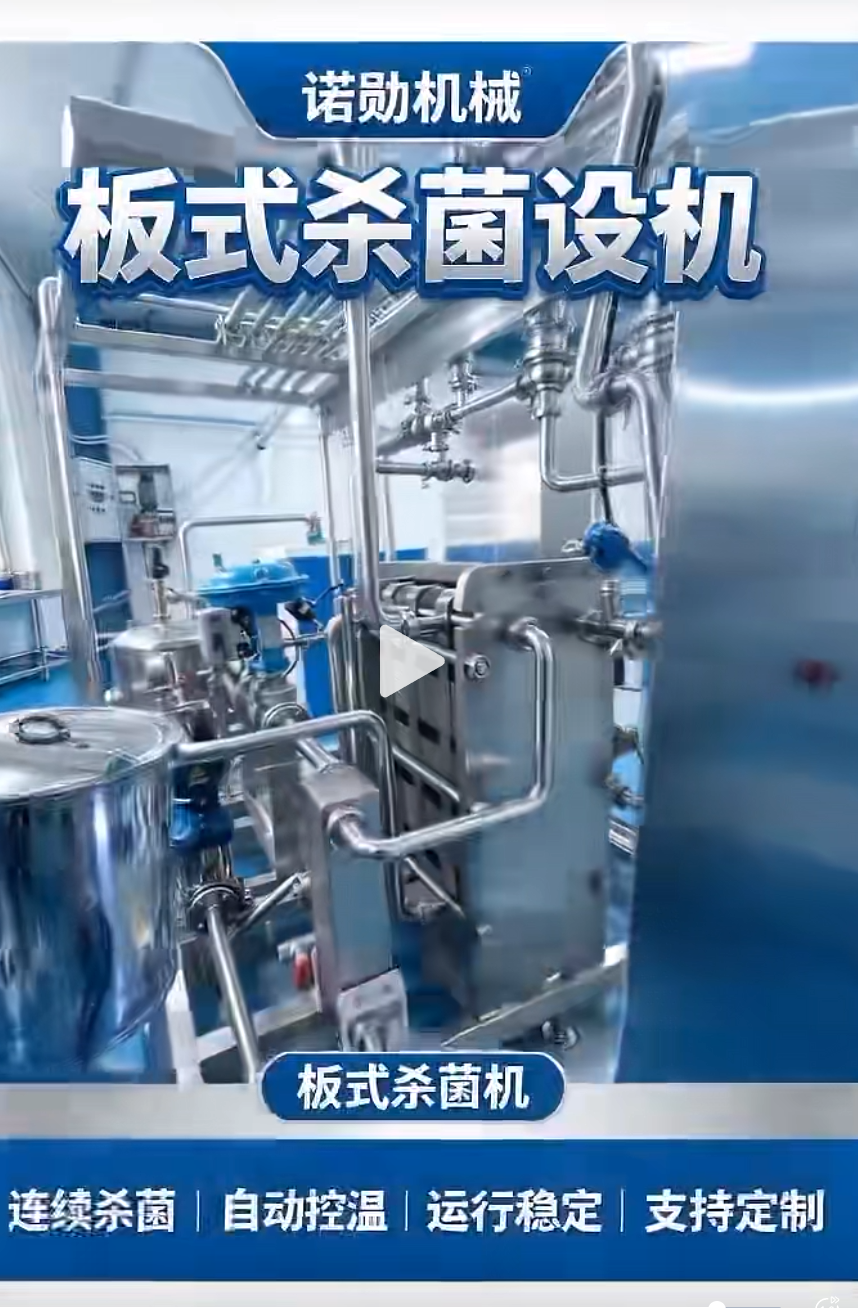

板式杀菌机Plate Pasteurizer

采用板式换热器，换热效率高、占地小，适合牛奶、果汁、茶饮、酒类等低粘度、无颗粒物料的连续巴氏或 UHT 杀菌。Plate heat exchanger design with high efficiency and small footprint — ideal for milk, juice, tea drinks and wine.

处理量Capacity: 1000 / 2000 / 3000 / 5000 L/h
杀菌温度Temperature: 85-140℃ 可设定
控制方式Control: MCGS 触摸屏 PLC 自动控温MCGS touchscreen PLC auto-temp
适用物料Products: 牛奶、果汁、茶饮、啤酒、葡萄酒、豆奶Milk, juice, tea, beer, wine, soy milk

咨询这款 →

高粘度物料High-Viscosity Products

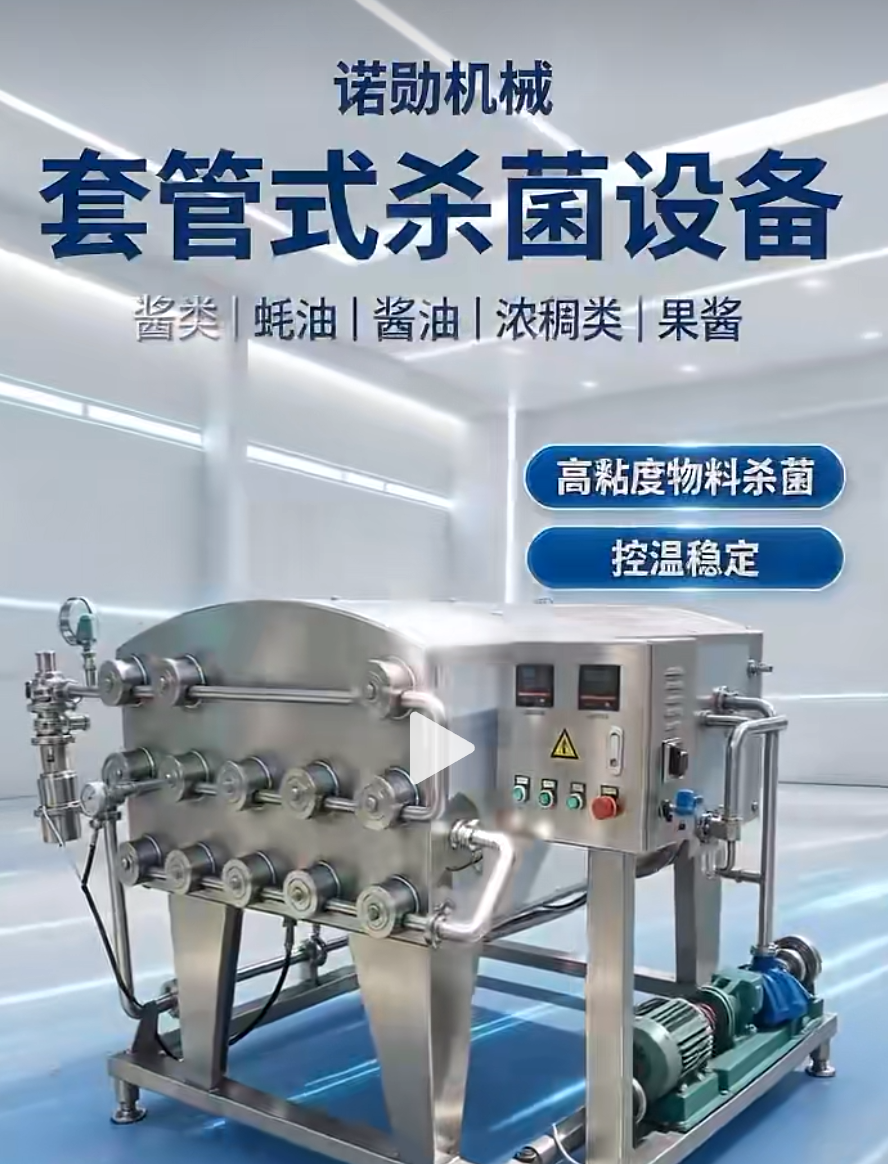

套管式杀菌设备Tubular / Shell-and-Tube Pasteurizer

多层套管结构，物料在管内流动，换热面积大、不易结垢挂壁，专为酱料、蚝油、酱油、果酱等粘稠或含颗粒物料设计。Multi-layer shell-and-tube design — large heat exchange area, no fouling. Built for sauces, oyster sauce, jam and concentrated purees.

处理量Capacity: 500 / 1000 / 2000 / 3000 L/h
杀菌温度Temperature: 85-135℃ 可设定
控制方式Control: 智能温控仪表 + 自动阀门Digital temp control + auto valves
适用物料Products: 番茄酱、辣椒酱、蚝油、酱油、果酱、浓浆Ketchup, chili sauce, oyster sauce, soy sauce, jam

咨询这款 →

APPLICATIONS

覆盖六大食品饮料行业

从一杯果汁到一瓶酱料，杀菌段我们都做过From a glass of juice to a jar of sauce — we've been there.

🥤

饮料 / 茶饮Beverages & Tea

果汁、果蔬汁、RTD 茶饮料、植物蛋白饮、碳酸前处理Juice, RTD tea, plant drinks, pre-carbonation

🥛

乳品Dairy

鲜奶、调味乳、乳饮料、酸奶前杀菌Fresh milk, flavored milk, yogurt pre-treatment

🍷

酒类Alcohol

葡萄酒、黄酒、米酒、清酒、配制酒Wine, rice wine, sake, formulated spirits

🌶

酱料 / 调味品Sauces & Condiments

番茄酱、辣椒酱、蚝油、酱油、沙拉酱、火锅底料Ketchup, chili sauce, oyster sauce, soy sauce

🍓

果酱 / 糖浆Jams & Syrups

草莓酱、芒果酱、果浆、葡萄糖浆、蜂蜜制品Strawberry/mango jam, fruit puree, glucose syrup

💊

其他Others

中药提取液、植物提取液、功能性口服液Herbal extracts, botanical extracts, oral liquids

ABOUT US

河南诺勋机械设备有限公司Henan Nuoxun Machinery Equipment Co., Ltd.

诺勋机械专注食品饮料行业连续式杀菌设备的研发与制造，主打板式杀菌机与套管式杀菌设备两条产品线。我们不做通用型"万能机"，而是根据你的物料特性、产能规模和车间条件，出针对性的工艺方案。Nuoxun Machinery focuses on continuous pasteurization equipment for the food & beverage industry. We don't sell one-size-fits-all machines — we tailor each skid to your product, capacity and plant layout.

设备出厂前做空载、带水联调和温度曲线测试；到厂后由工程师指导就位、接管、接线、试生产，直到连续出合格产品。Every skid is tested with water at our factory before shipment. Engineers guide installation, piping, commissioning and trial production on site.

食品级 304 / 316L 不锈钢，卫生级管道与快装阀门Sanitary 304 / 316L stainless, tri-clamp piping and valves
MCGS 智能触摸屏，中英文双语操作界面MCGS smart HMI with CN/EN bilingual interface
CIP 在位清洗系统，减少人工拆洗工作量Integrated CIP cleaning system
处理量 1000-10000L/h，可并联扩展Capacity 1000-10000L/h, scalable with parallel units
标准交期 20-30 个工作日，定制规格另议Standard lead time 20-30 working days
